How It Works

An overview of our design

and how Floortble works

Where 15mm panels are used, additional supports are added for stability

Benefits

Your floor can be assembled and disassembled repeatedly without the need for on-site joinery work. It's a simple system that can be installed by anyone without the use of tools, force or friction.

Floortble floors are reusable, easy to lay and a time-saver. A finished floor can be laid in minutes.

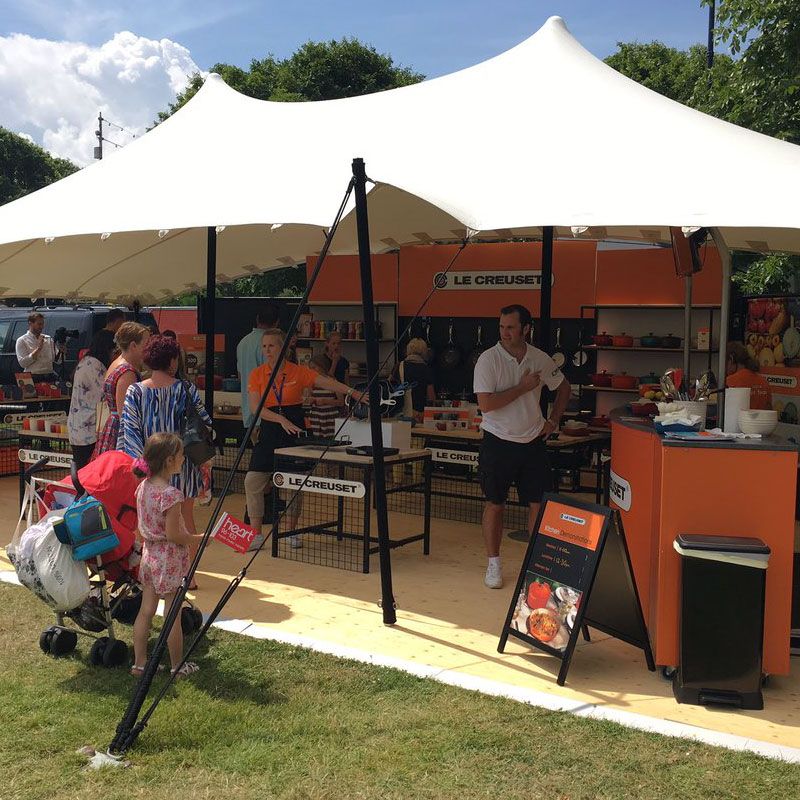

Primarily, we offer bespoke floors, so you can customise to suit your project. Our floor panels are available in a wide range of substrates and finishes to meet your specific needs: indoors or outdoors, various colors and woodgrains, either raw or finished.

Our modular system allows for easy scalability to accommodate for different sizes and future events.

Modular & Scalable

Carpets & Overlays

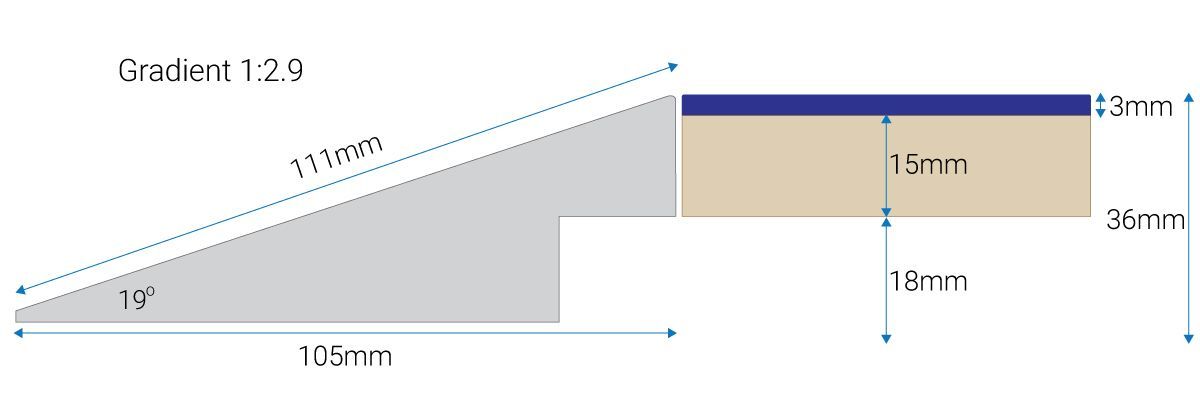

Manufactured using a 15mm base panel to provide a 3mm allowance for any overlay.

Use your own carpet, vinyl, linoleum or other covering up to 3mm thick.

15mm base gives 3mm clearance

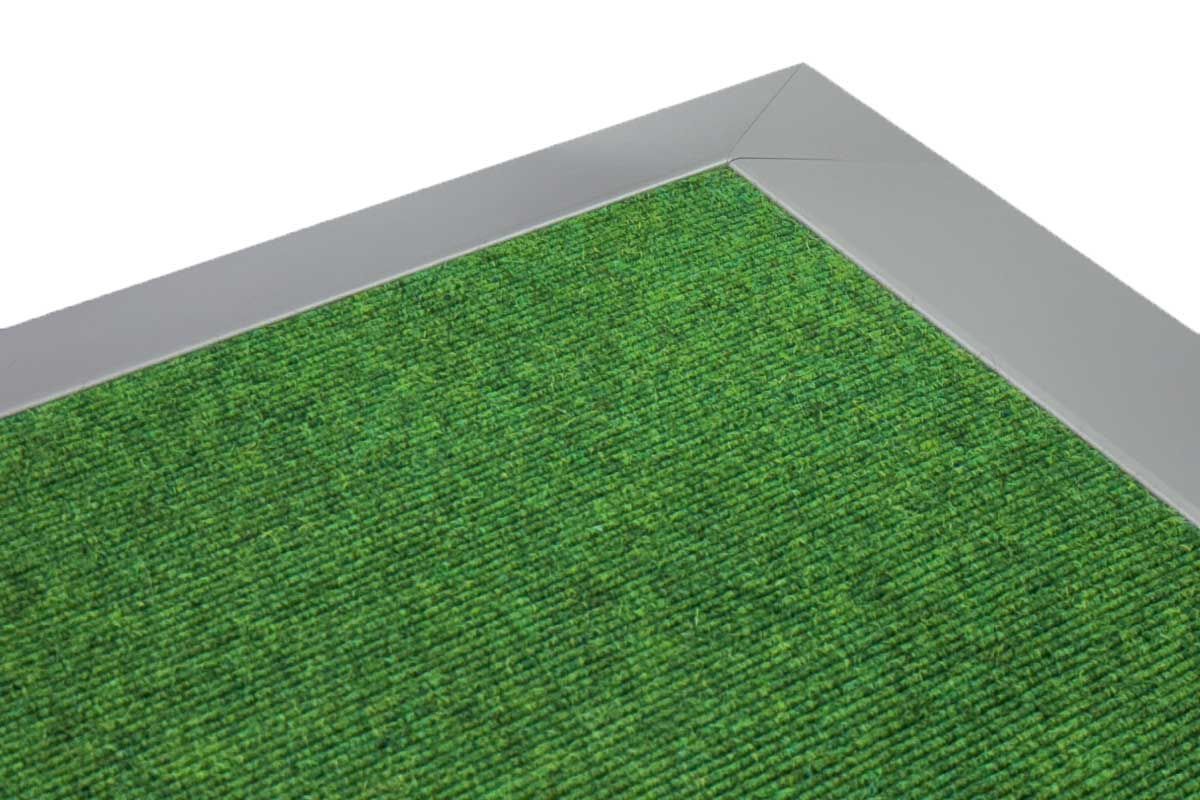

Overlaid with carpet

Printed flooring grade vinyl

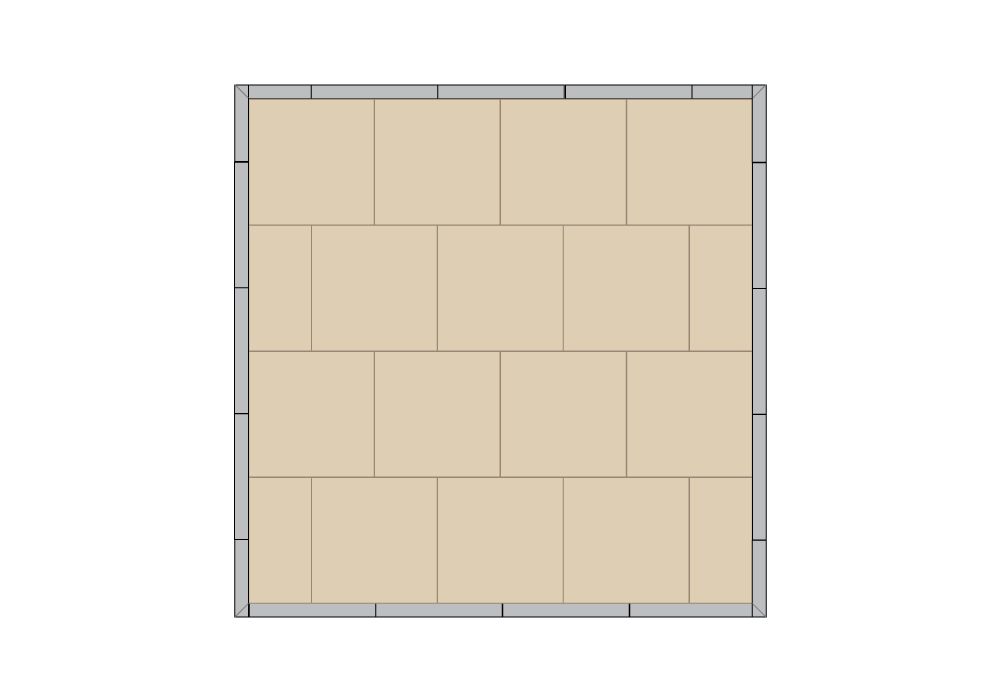

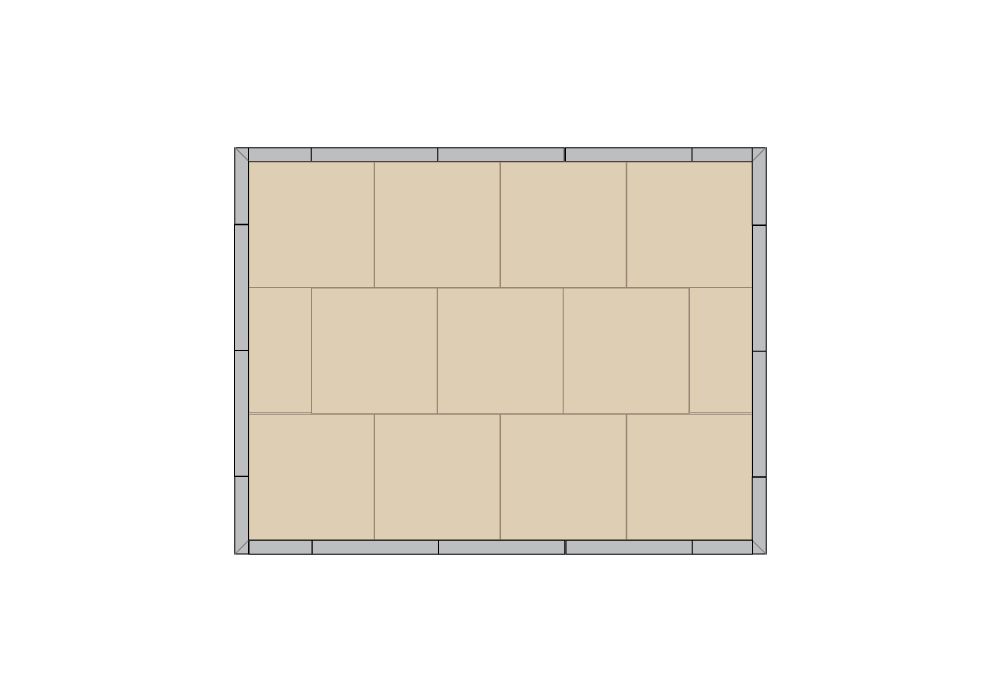

Floortble is modular, so a large floor can be scaled down to smaller sizes.

With a few extra components, a large floor can be used to create two smaller ones.

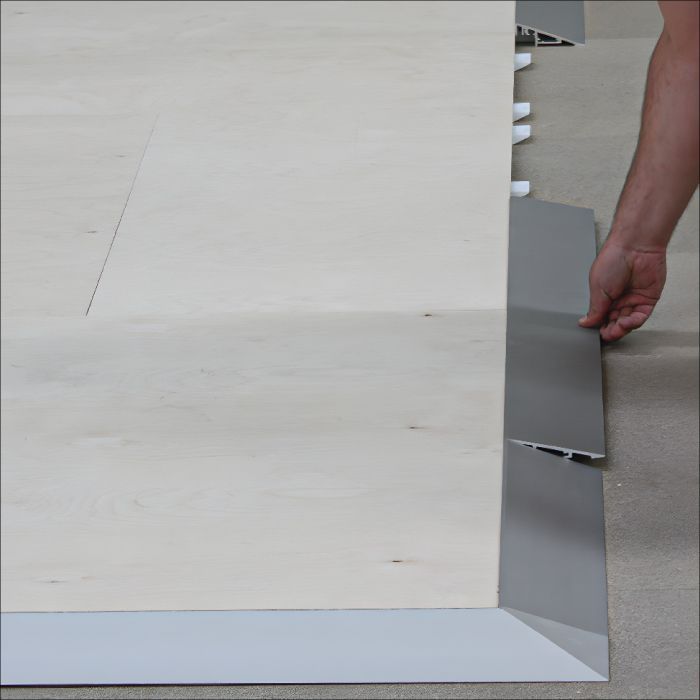

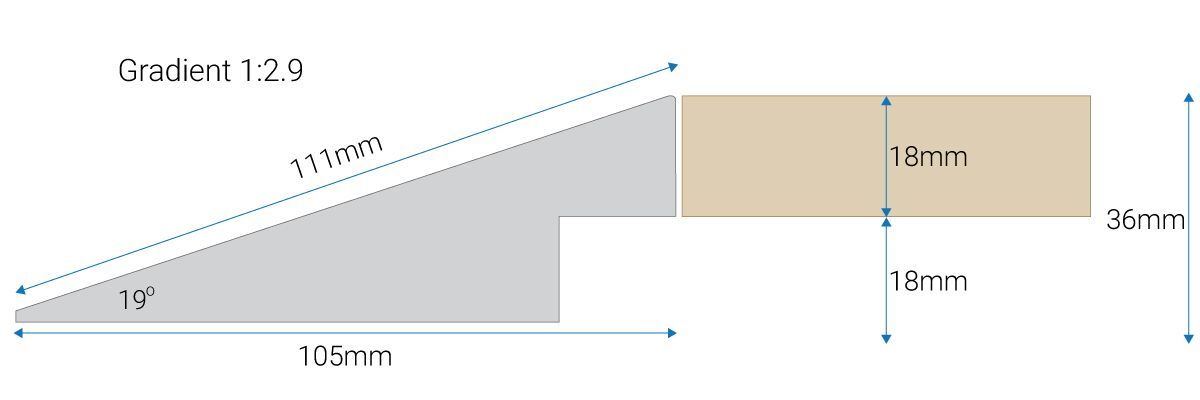

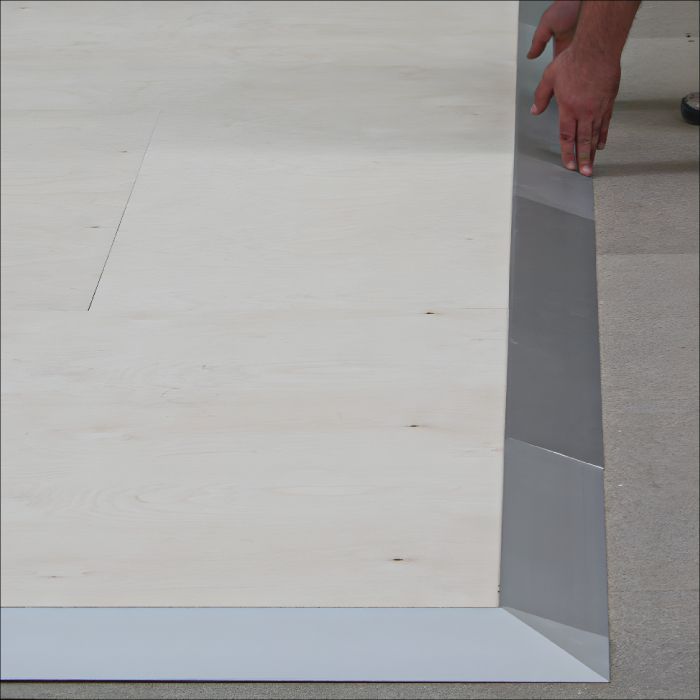

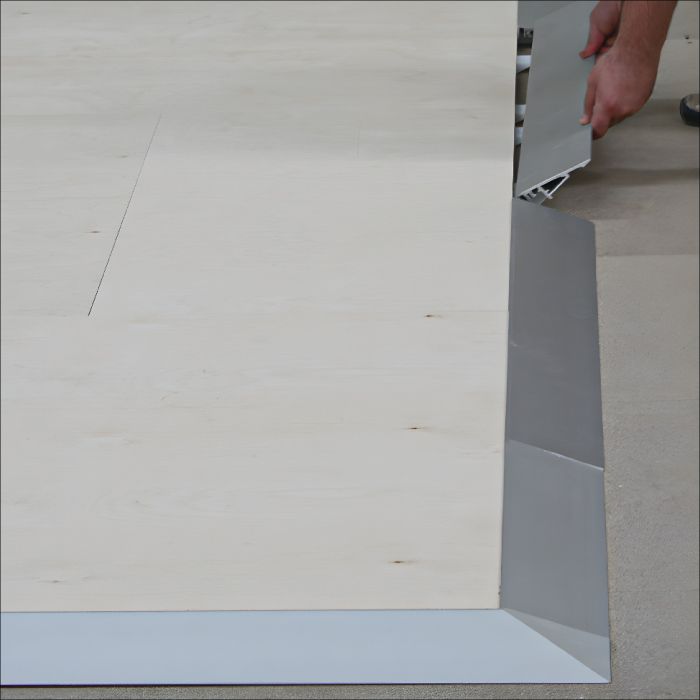

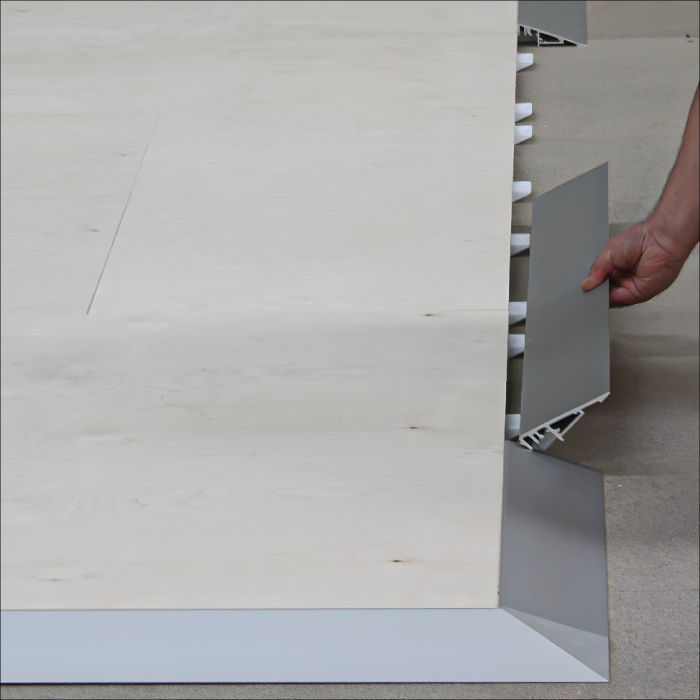

Sloping Perimeter

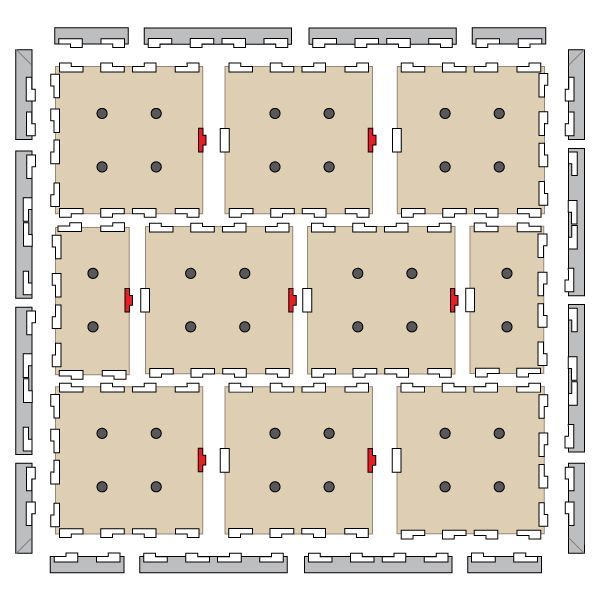

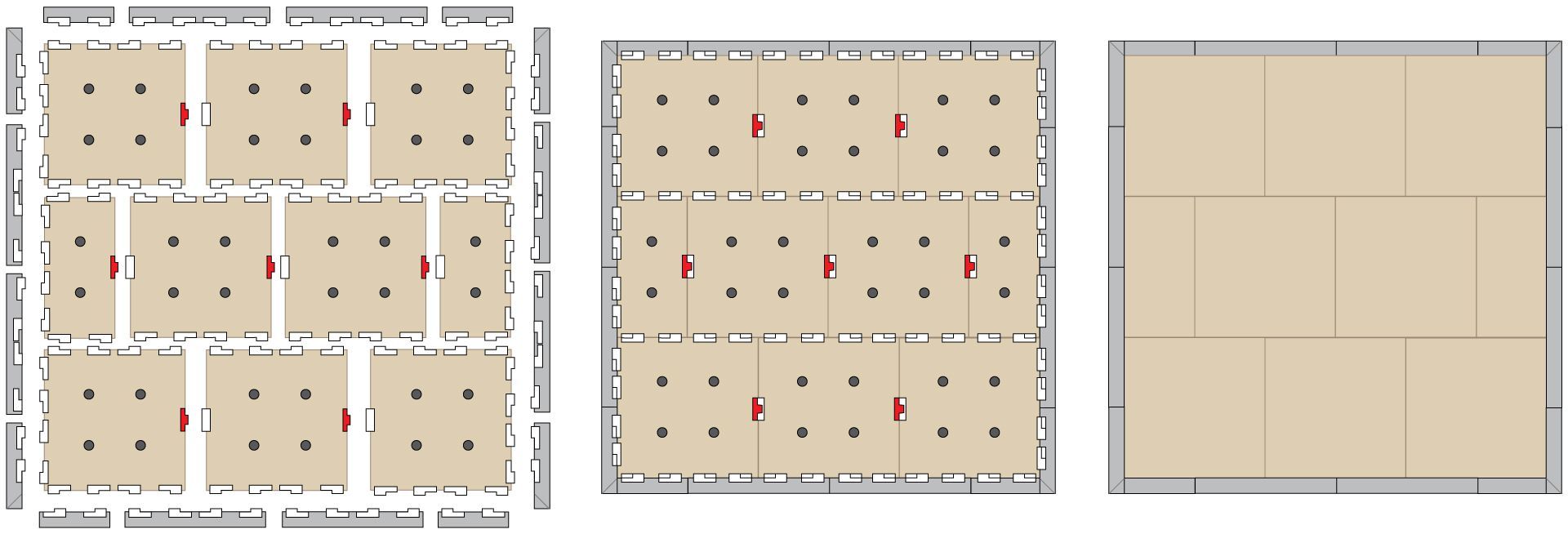

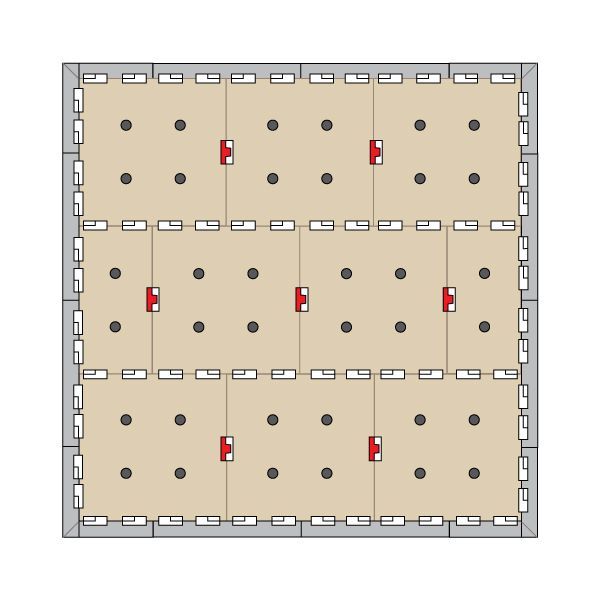

Component Layout

On a standard full panel

there are 10 connecting components.

When combined with our sloping perimeter

the panels are held in place on all four edges.

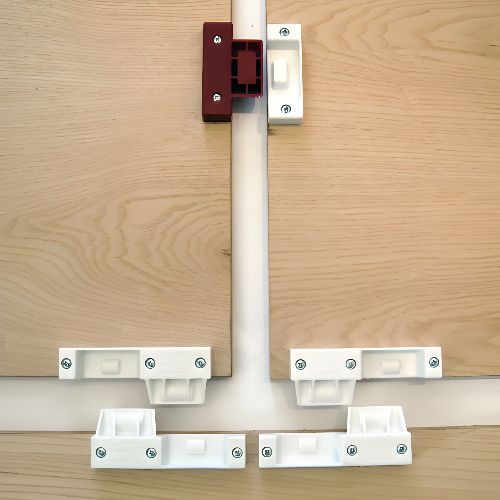

"Coupling Projectors"

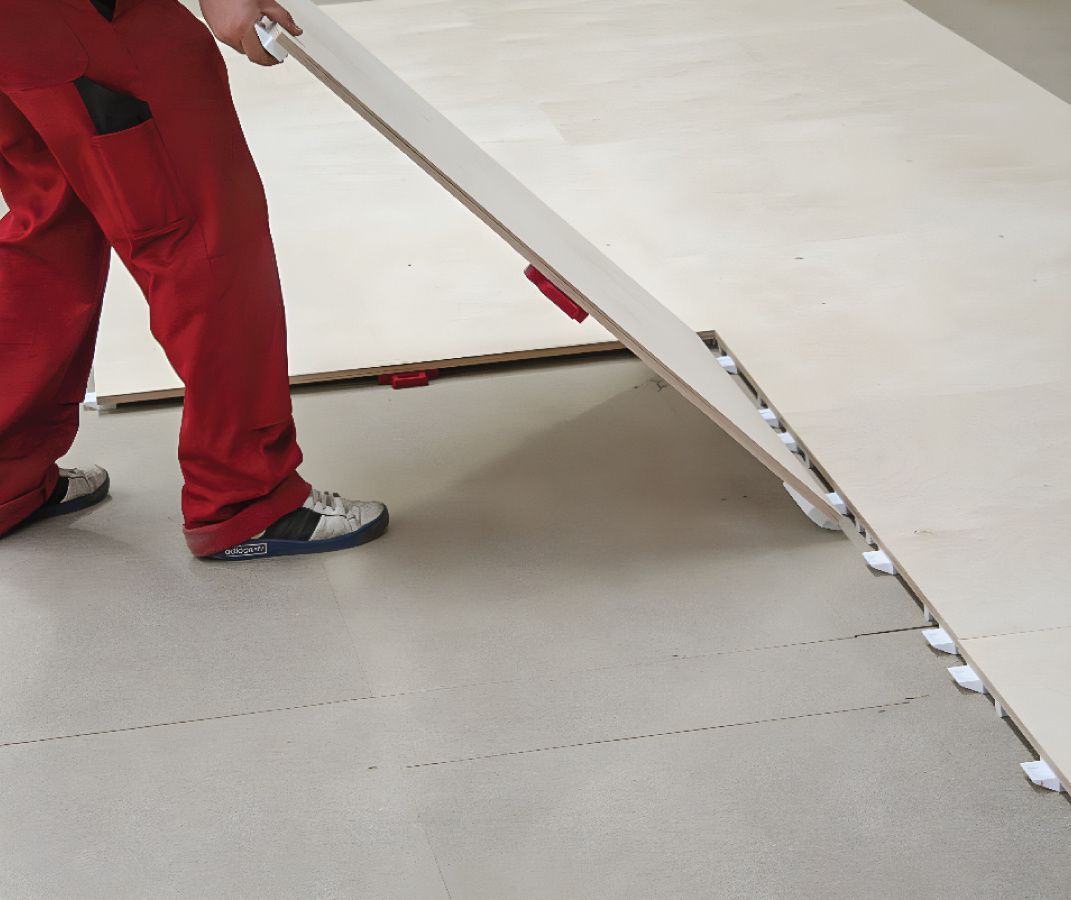

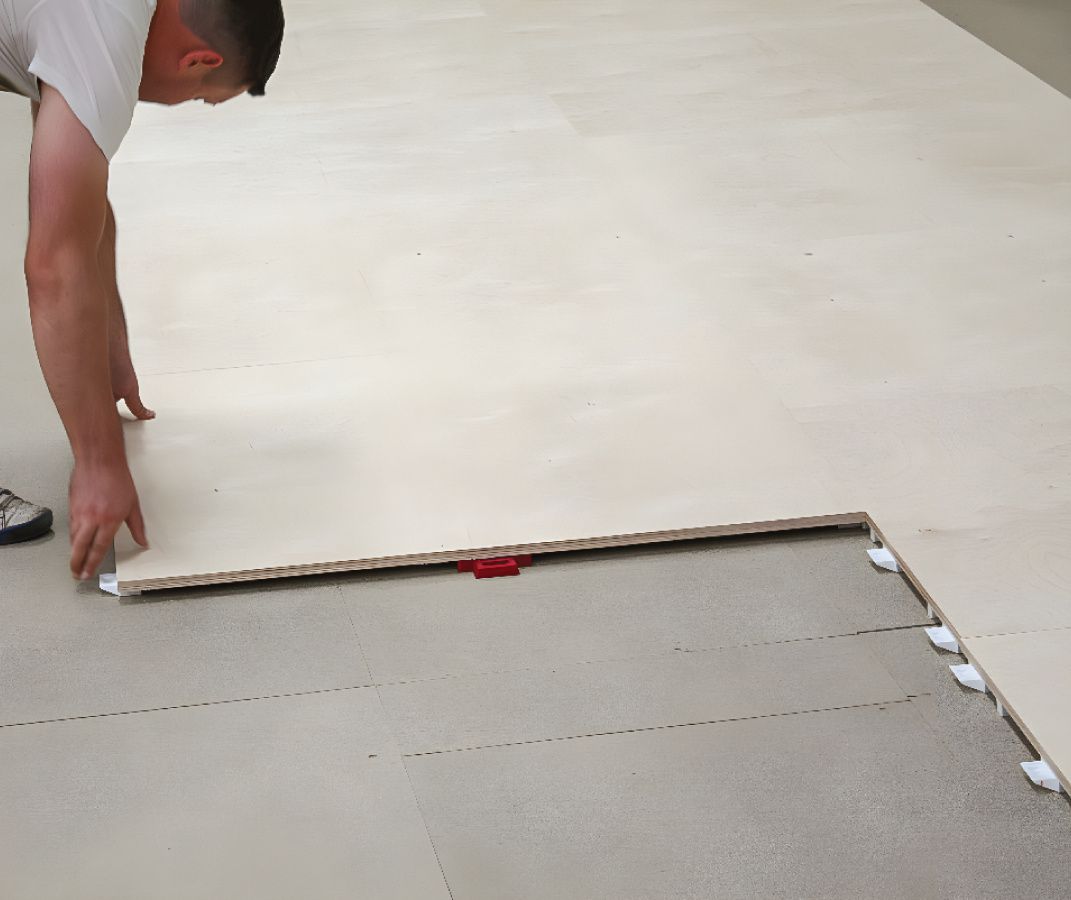

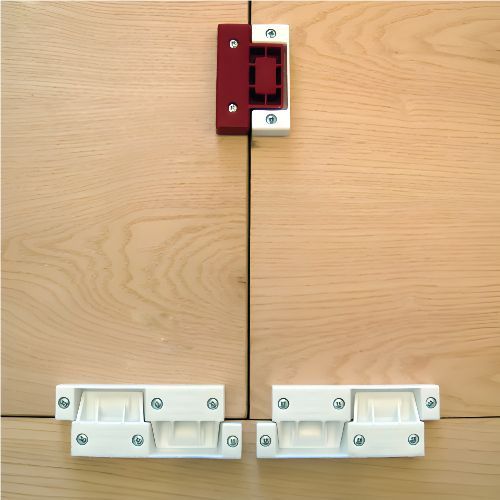

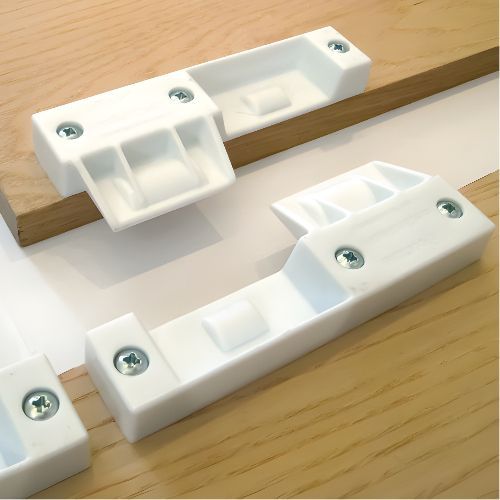

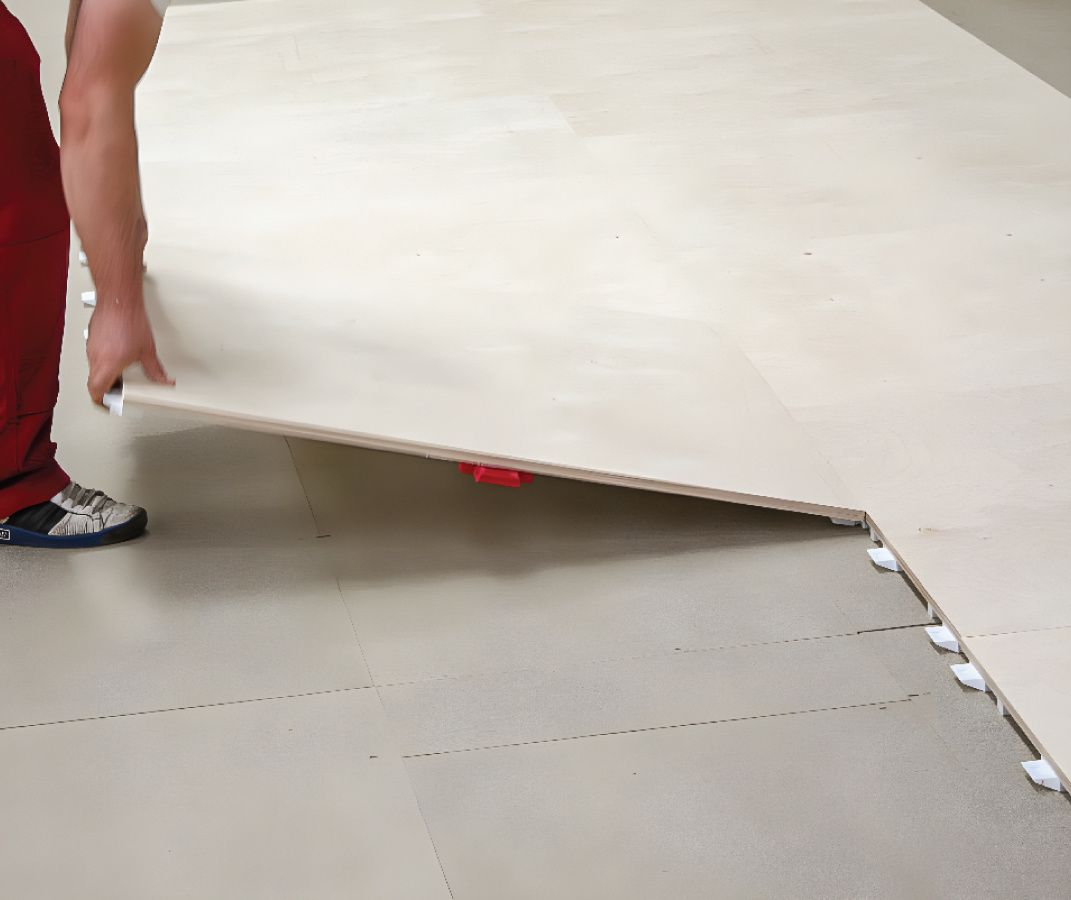

Coupling Projectors (CP's) are constructed from durable nylon and are the essential component of Floortble. When introduced at an angle, they begin to interlock and embrace each other as they become horizontal. Once flat, they remain securely connected and cannot be separated along any plane. The red and white components are a locating pair that assist in holding the panels in place while also providing support from below.

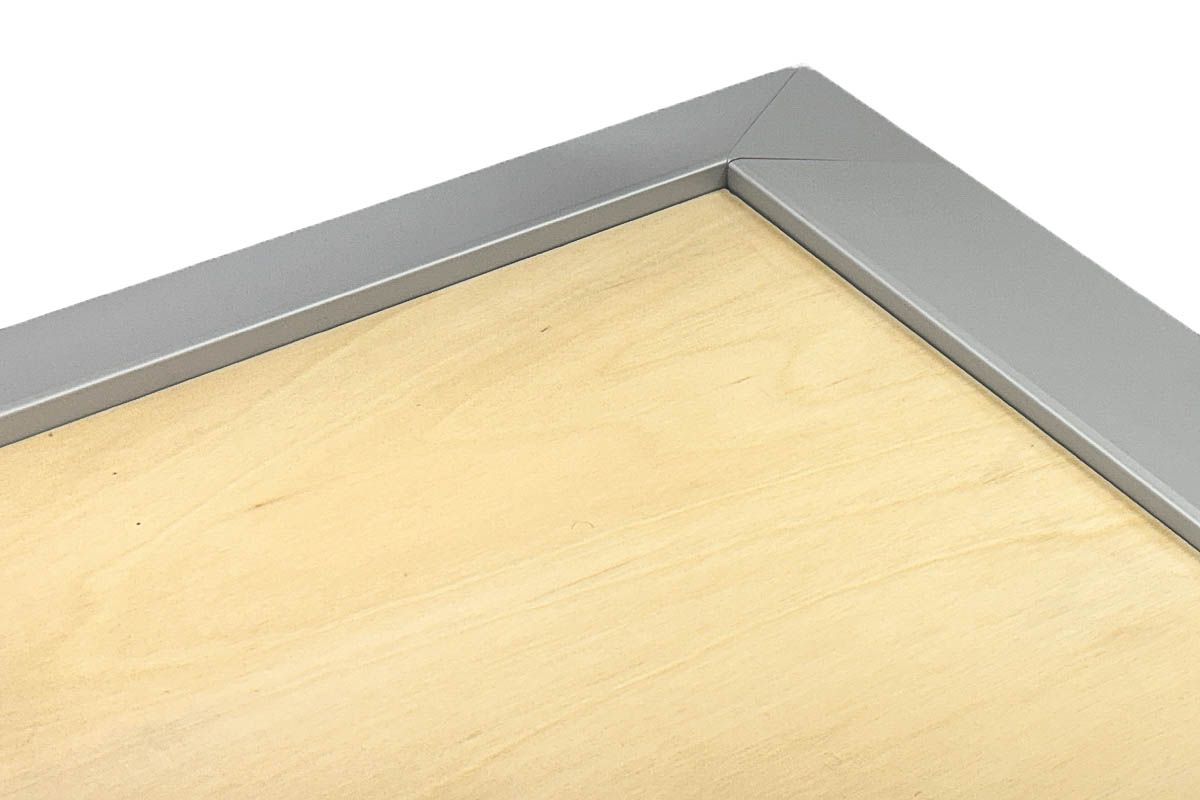

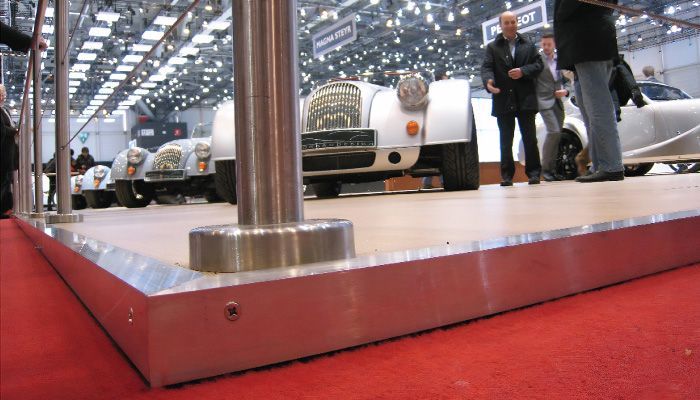

Edge Capping

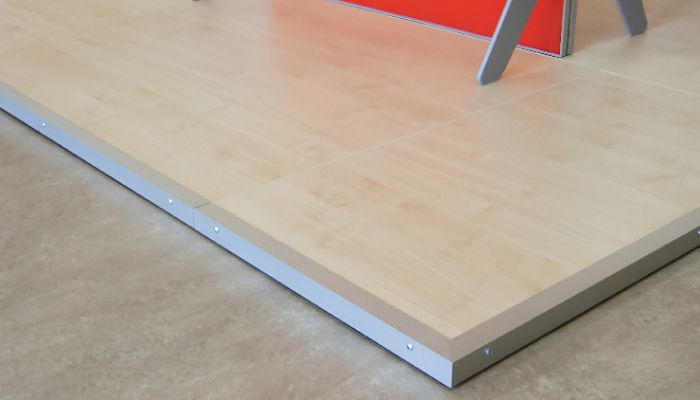

Anodised aluminium capping fixed onto the edge panels with a 3mm ground clearance.

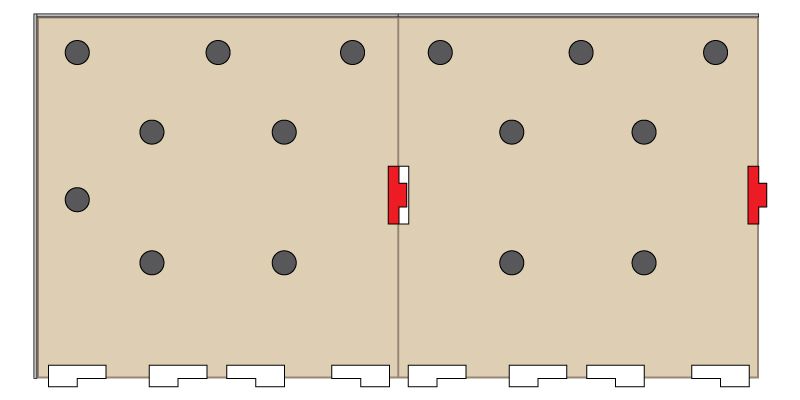

Where edge capping is used

additional supports are added

along the panel edge for stability

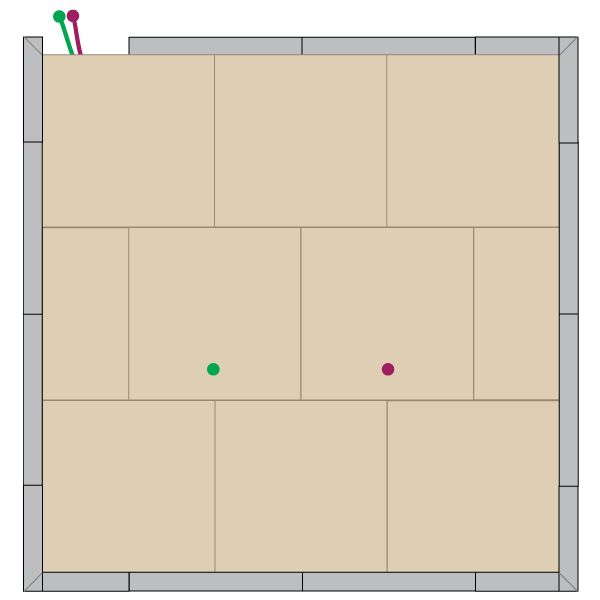

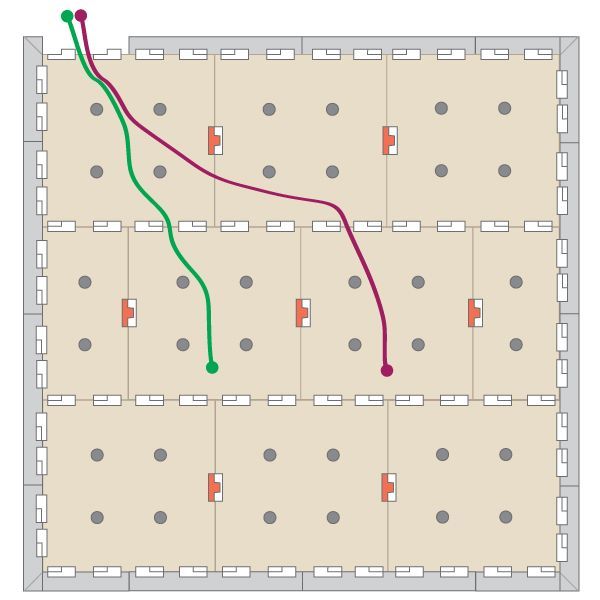

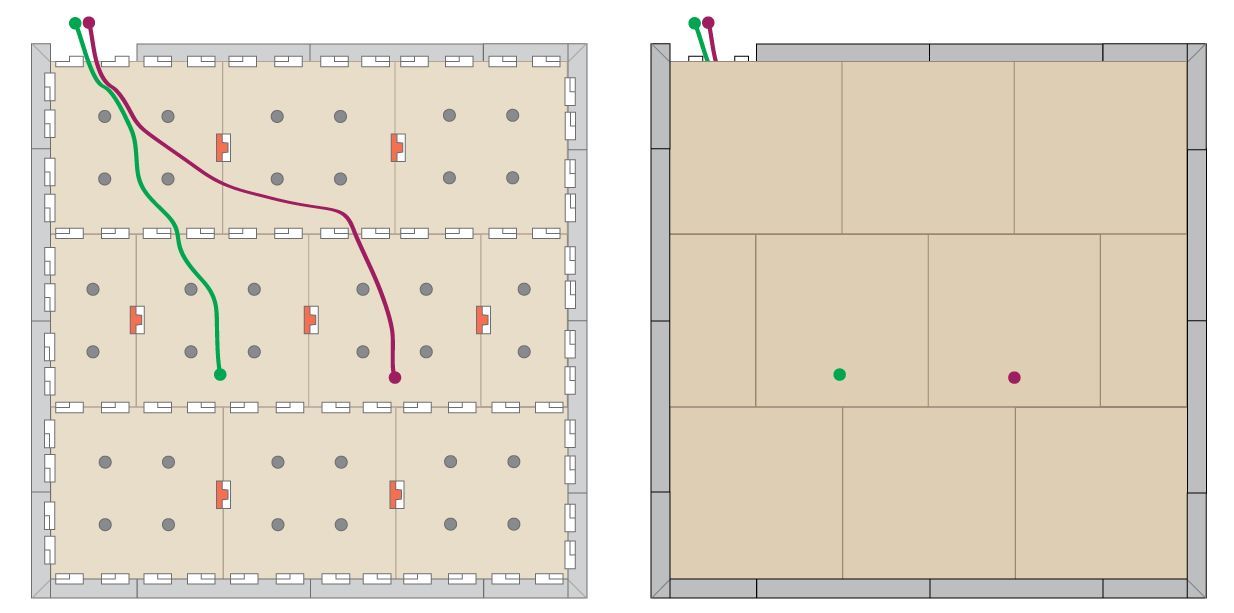

Running Cables

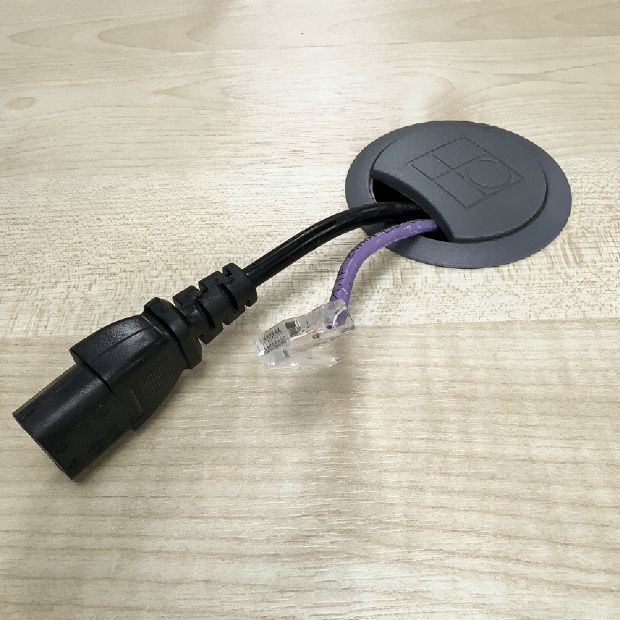

Cables can be run beneath the Floortble floor, which offers an 18mm floor clearance and space between components. When placing your order, you can specify the locations for access holes, and panels will be delivered pre-drilled and equipped with a plastic cover. Alternatively, panels can be drilled and modified on-site.

"Footprint" Floor

Heavy Load

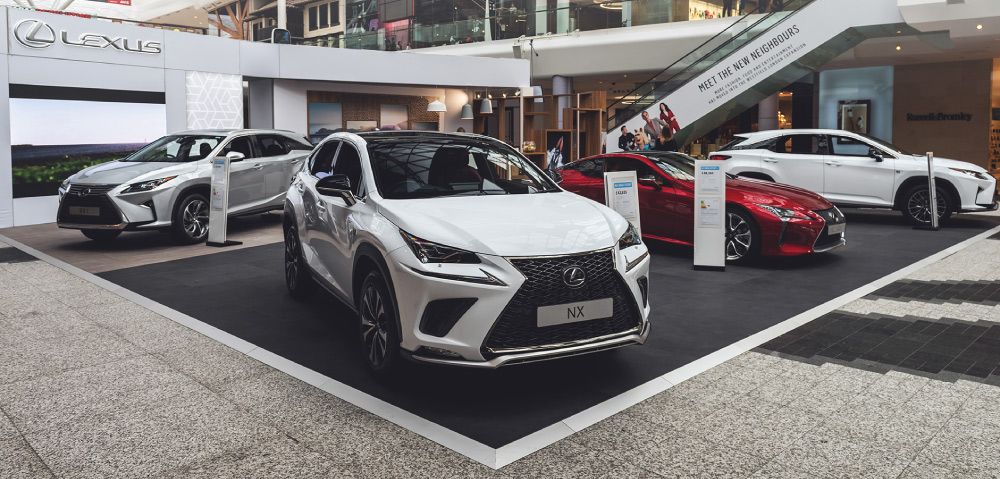

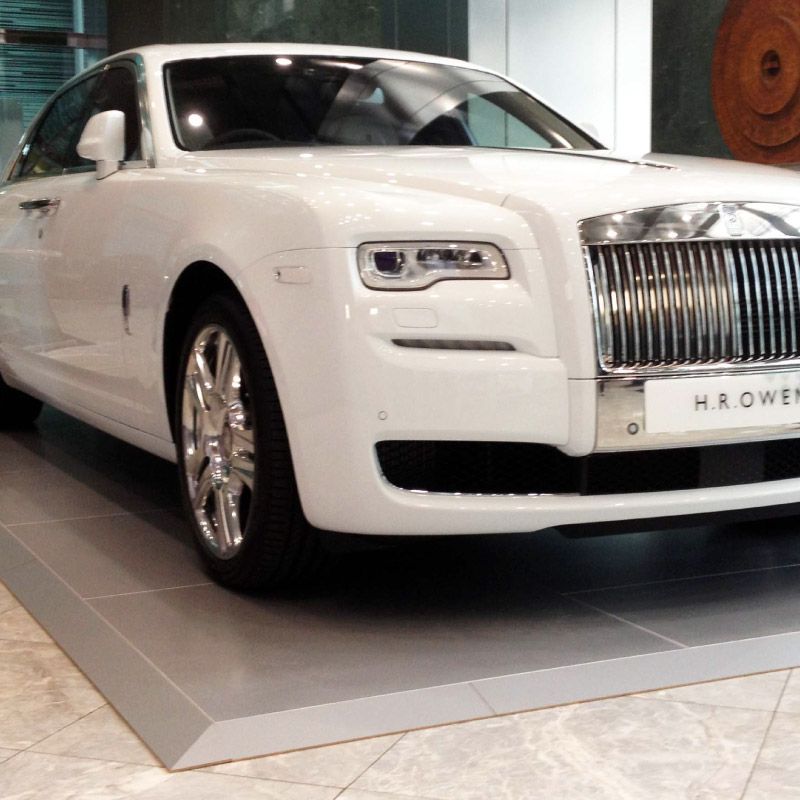

Our Automotive floors are designed to accommodate heavy equipment or cars - including electric vehicles

Floortble is regularly used for car display floors.

Suitable for semi-permanent showroom displays, plus short-term use during marketing campaigns.

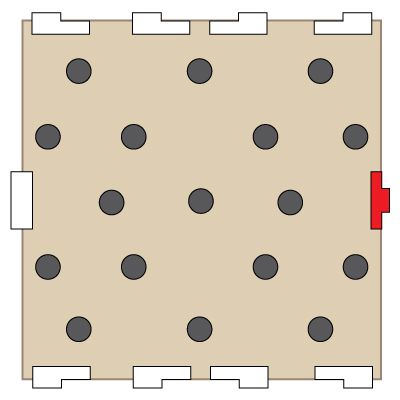

Automotive floor panels have additional supports for increased weight bearing strength.

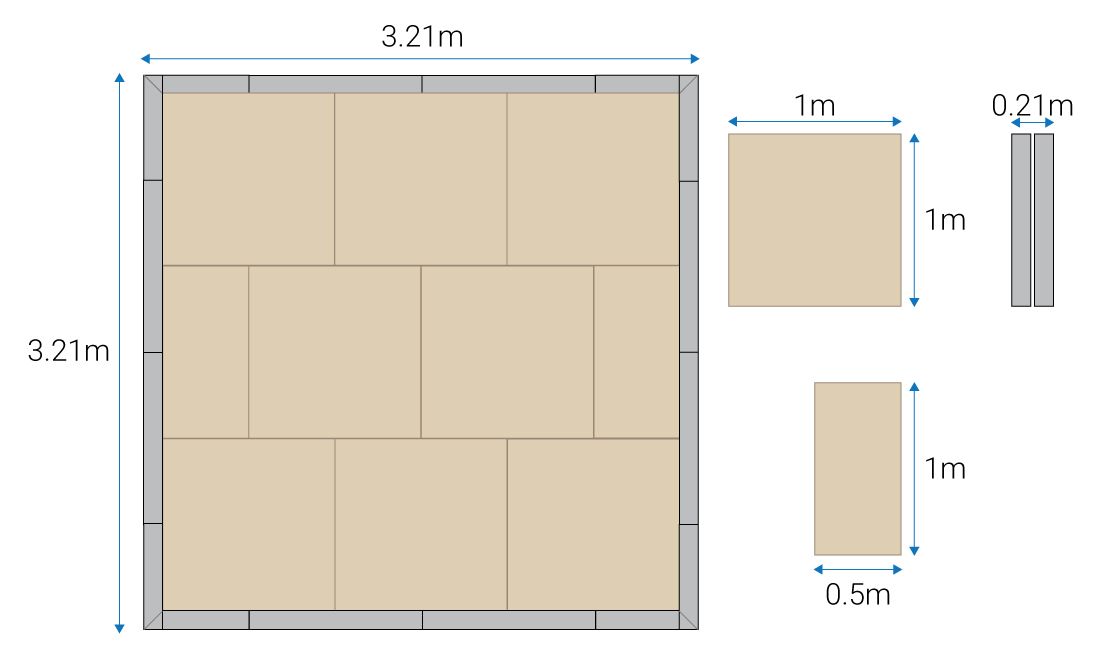

Our standard floor uses 1m x 1m panels and 105mm wide sloping perimeter.
We can reduce edge panels to stay within an allocated footprint.

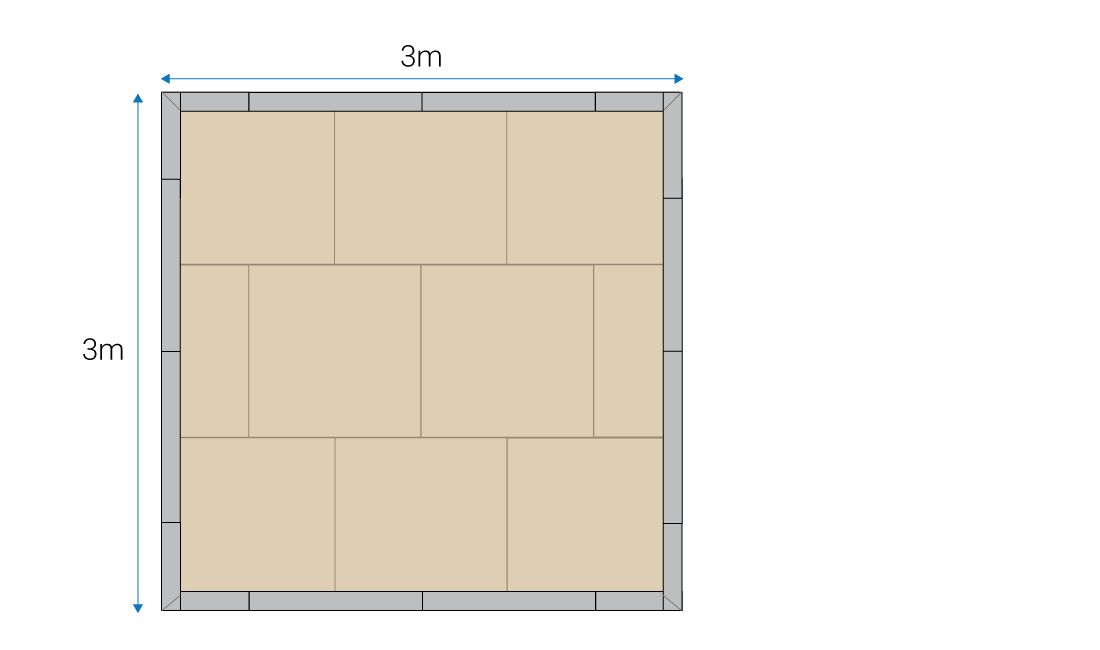

See 3m x 3m example below.

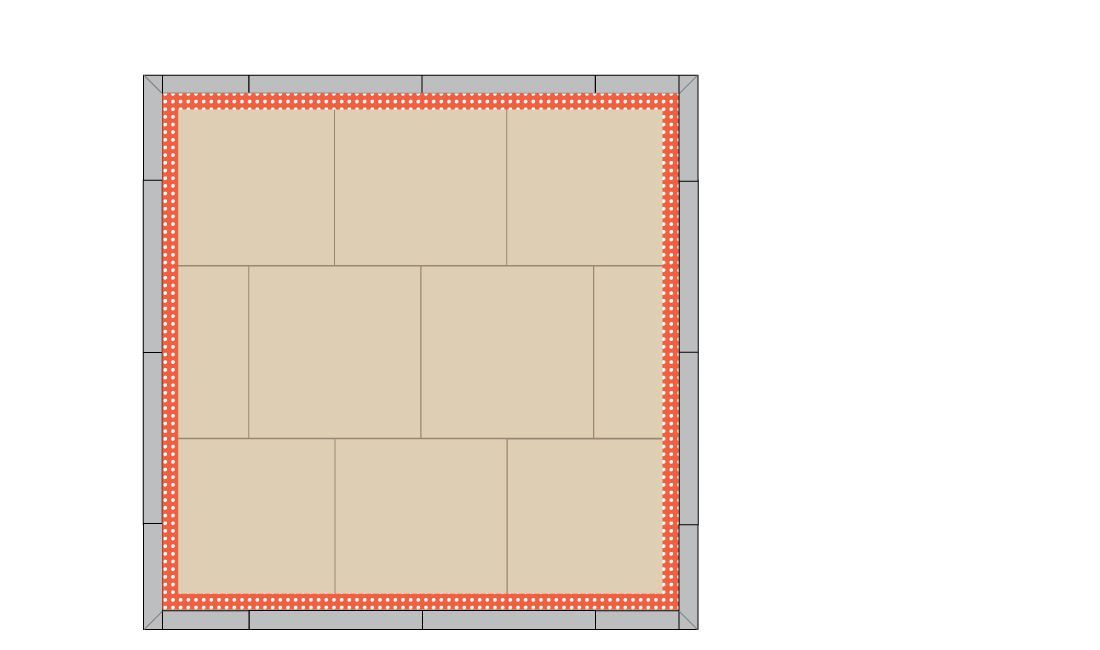

Alternatively opt for aluminium edge capping.

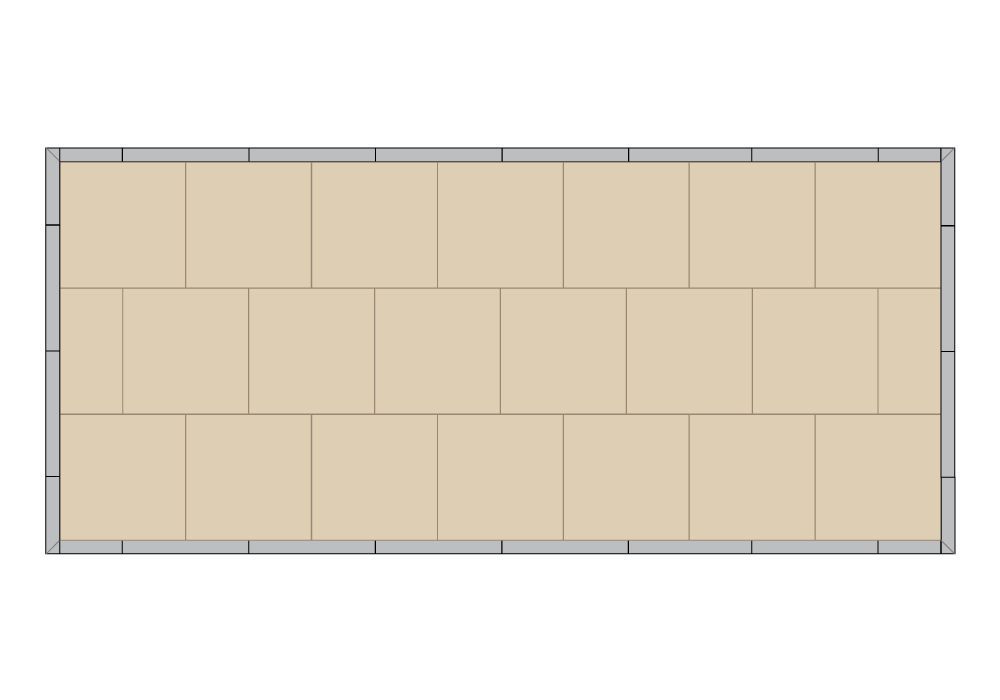

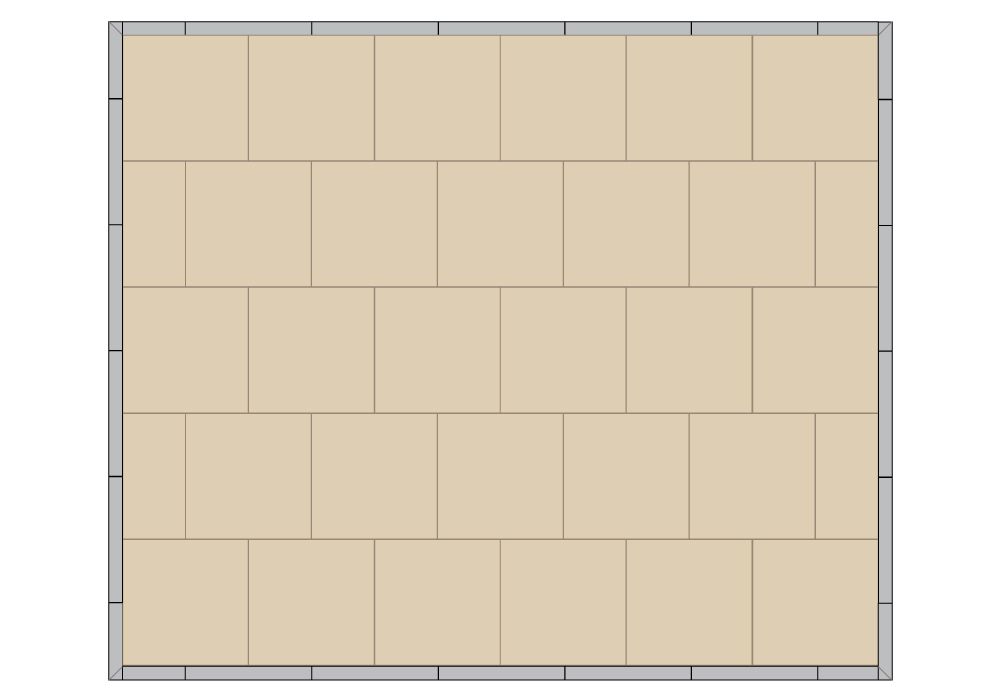

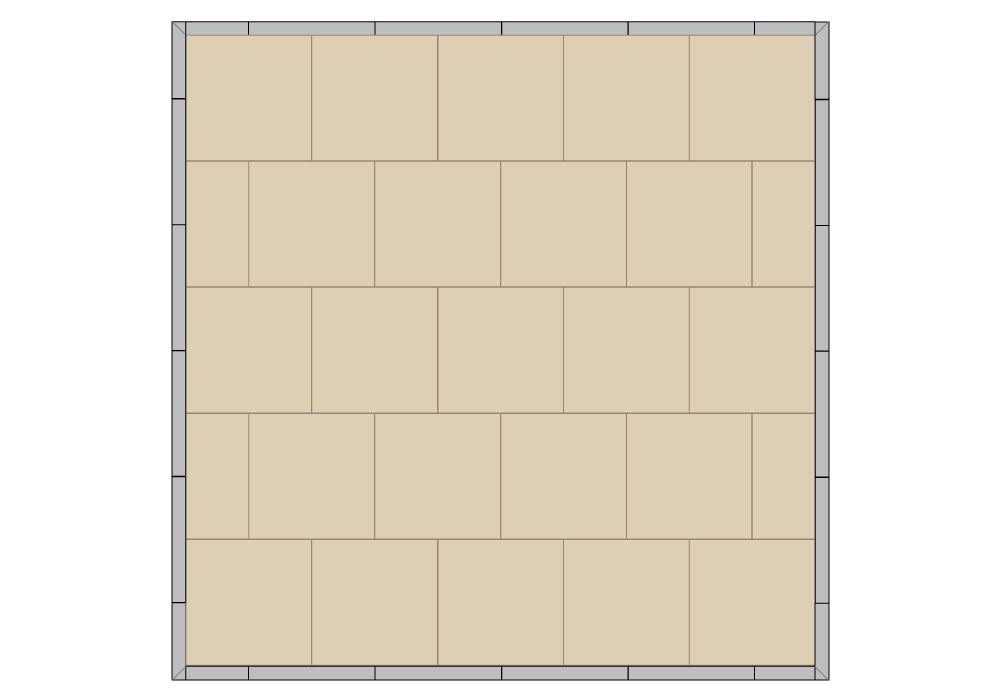

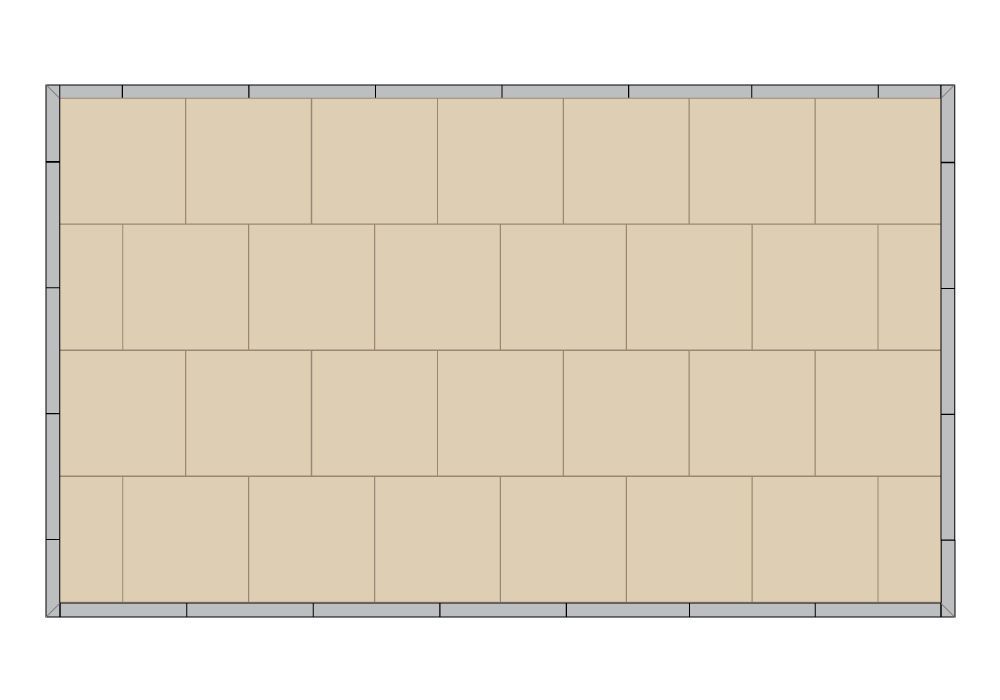

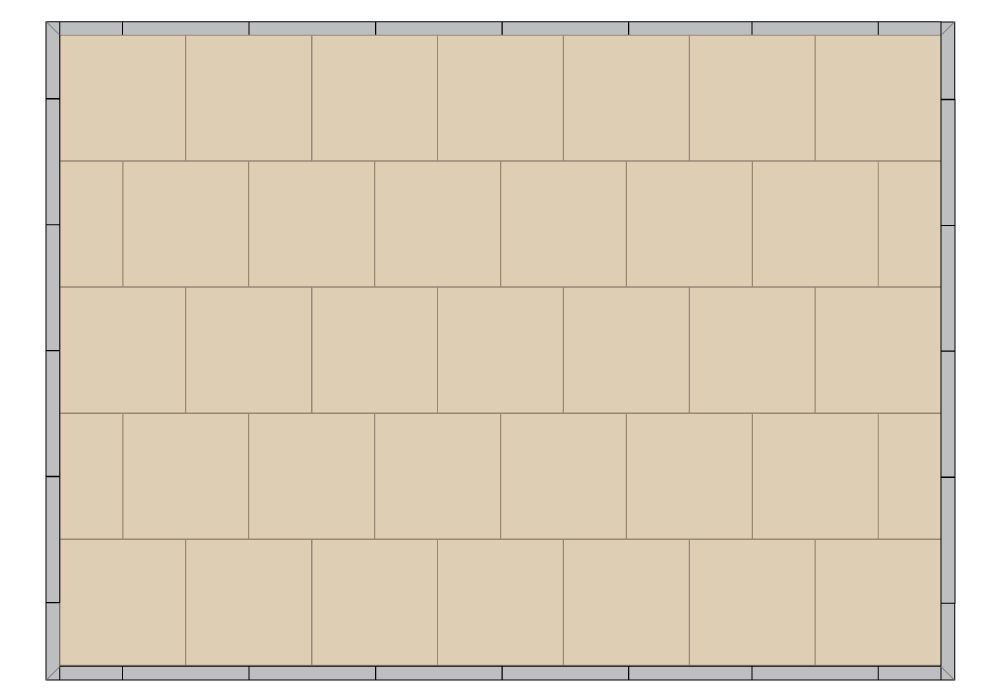

The above layouts (and more) are achievable from a 7x5 floor, plus two extra pieces of sloping perimeter.

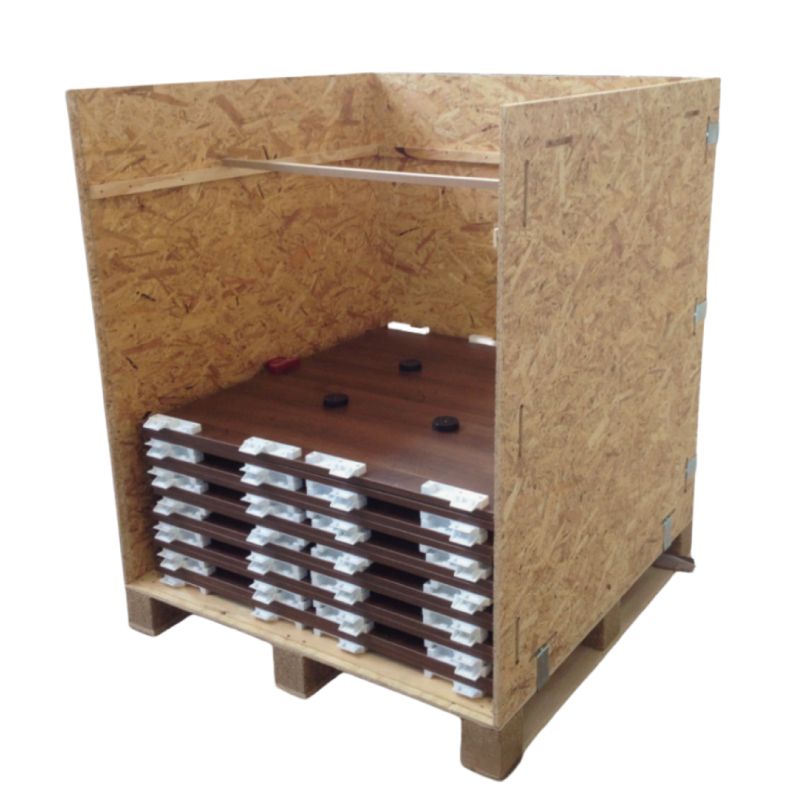

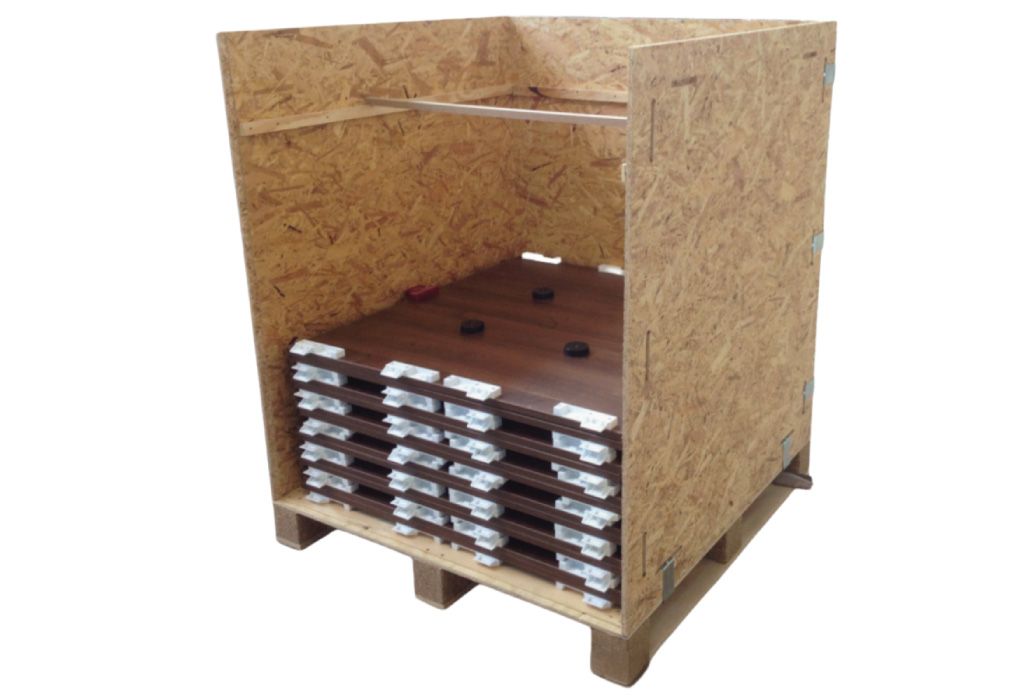

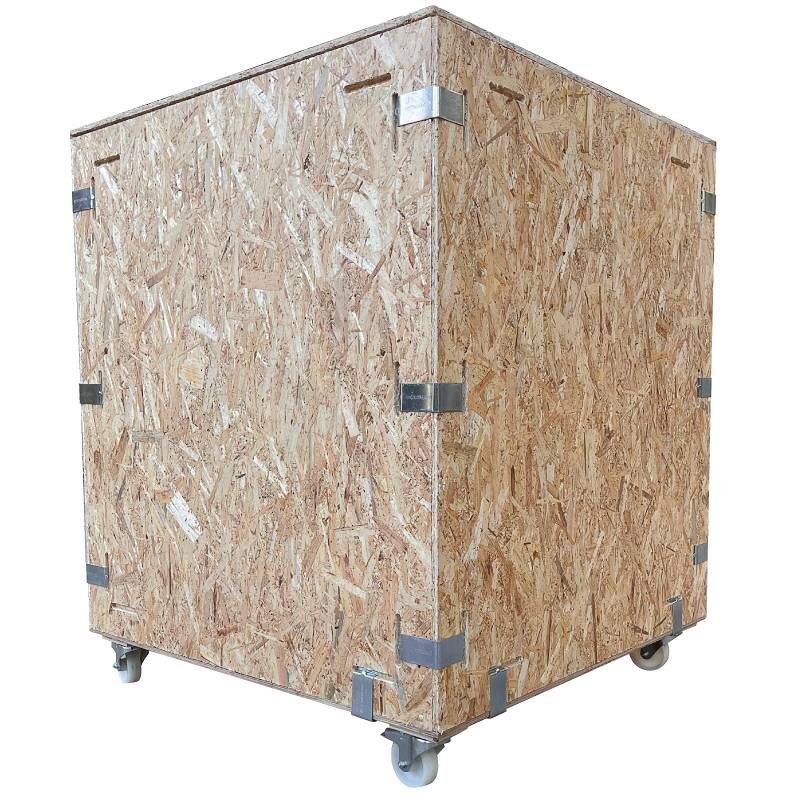

Transport

& Storage Crates
